Opis
| Čipset | AMD B550 |
| Podržani procesori | Podržava AMD Ryzen™ 5000/5000G/4000G/3000 seriju procesora. |
| Memorija | 4th Gen AMD Ryzen Procesora (Vermeer CPUs): Podržava Dual Channel DDR4 – 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133 4th Gen AMD Ryzen sa Radeon Graphics Procesorom (Cezanne APUs): Podržava Dual Channel DDR4 – 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133 3rd Gen AMD Ryzen Processors (Matisse CPUs): Podržava Dual Channel DDR4 – 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133 3rd Gen AMD Ryzen sa Radeon Graphics Procesorom (Renoir APUs): Supports Dual Channel DDR4 – 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133 2 x DDR4 DIMM Memory Slot, Maksimalno podržava do 64 GB memorije. |
| Skladište | Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports 1 x M.2 (M Key) Socket (M2M_CPU): Supports M.2 Type 2260/2280 SSD module AMD Ryzen 5000/3000 Processors Supports PCIe 4.0 x4 (64Gb/s) – NVMe SSD, SATA III (6.0Gb/s) SSD. AMD Ryzen 5000G/4000G Processors Supports PCIe 3.0 x4 (32Gb/s) – NVMe SSD, SATA III (6.0Gb/s) SSD. AMD B550 Chipset 4 x SATA III Connector (6Gb/s): Supports AHCI & RAID 0, 1, 10 * M.2 (M2M_CPU) Socket: The bandwidth is depended on CPU. * Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse & 4th Gen Vermeer. * Specifications vary by CPU types |
| Mrežna karta | Realtek RTL8111H 10/ 100/ 1000 Mb/s |
| Zvučna karta | Realtek ALC897 7.1 Channels, High Definition Audio, Hi-Fi (Front) |
| USB | 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers) |
| Slotovi za proširenje | AMD Ryzen 5000/3000 Processors 1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode) or AMD Ryzen 5000G/4000G Processors 1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode) AMD B550 Chipset 2 x PCIe 3.0 x1 Slot |

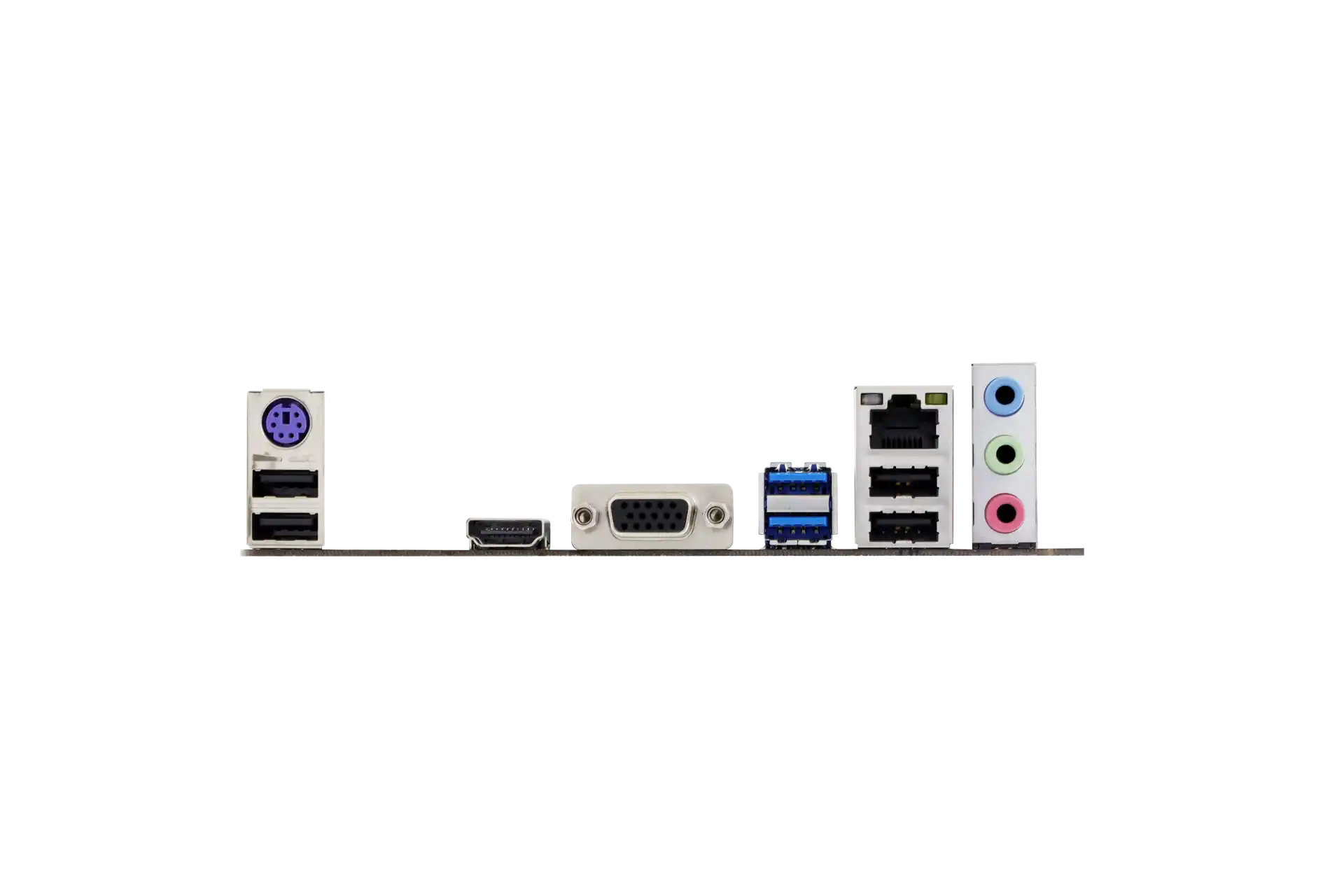

| Konektori na zadnjoj strani | 1 x PS/2 Keyboard/ Mouse 1 x VGA Port 1 x HDMI Port 1 x LAN port 2 x USB 3.2 (Gen1) Ports 4 x USB 2.0 Ports 3 x Audio Jack |
| Interni konektori | 4 x SATA III 6.0Gb/s Connectors 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x 4-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Serial Header 1 x Internal Stereo Speaker Header |
| DIMENSION | Micro ATX Form Factor Dimension: 19.0 cm x 23.5 cm ( W x L ) |
| Garancija | 24 meseca |
