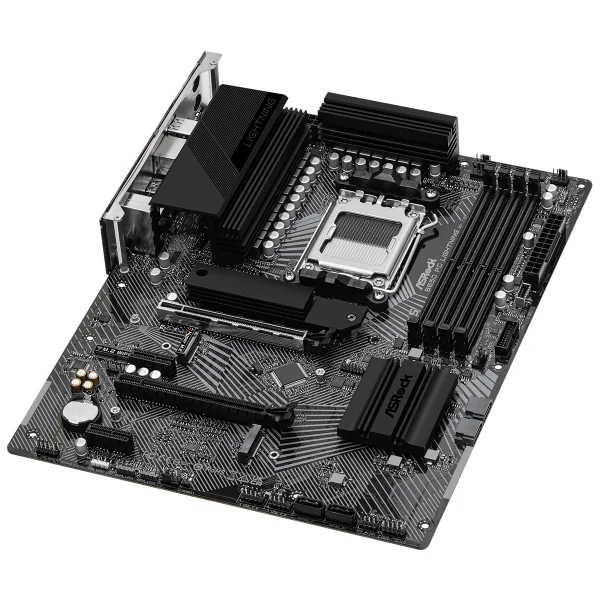

MB AM5 ASRock B650 PG LIGHTNING 90-MXBK20-A0UAYZ

EAN: 4710483940910 Kategorija: , , Brend:

Cena:

23.302 RSD

Na stanju

Opis

    • Unique Feature
      Superb Productivity
      – PCIe Gen5 (M.2)
      – Dual Channel DDR5
      Rock-Solid Durability
      – 14+2+1 Power Phase, 60A SPS
      – Pre-Installed I/O Shield
      Ultrafast Connectivity
      – 2.5G LAN
      – ASRock Lightning Gaming Ports
      EZ Update
      – BIOS Flashback Button
      – ASRock Auto Driver Installer
      EZ Troubleshooter
      – ASRock Post Status Checker
    • CPU
      – Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
    • Chipset
      – AMD B650
    • Memory
      – Dual Channel DDR5 Memory Technology
      – 4 x DDR5 DIMM Slots
      – Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*
      – Max. capacity of system memory: 128GB*
      – Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    • BIOS
      – 256Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
      – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    • Audio
      – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      – Nahimic Audio
    • LAN
      – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
      – Dragon RTL8125BG
      – Supports Phantom Gaming LAN Software
      – Smart Auto Adjust Bandwidth Control
      – Visual User Friendly UI
      – Visual Network Usage Statistics
      – Optimized Default Setting for Game, Browser, and Streaming Modes
      – User Customized Priority Control



  • Slots
    CPU:
    – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode*
    – 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)*
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    – 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    – 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode*
    – 4 x SATA3 6.0 Gb/s Connectors

    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
  • RAID
    – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    – Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

    *Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    – 1 x USB 3.2 Gen2x2 Type-C (Rear)
    – 1 x USB 3.2 Gen2 Type-C (Front)
    – 9 x USB 3.2 Gen1 (7 Rear, 2 Front)
    – 8 x USB 2.0 (4 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Connector
    – 1 x SPI TPM Header
    – 1 x Power LED and Speaker Header
    – 1 x RGB LED Header*
    – 3 x Addressable LED Headers**
    – 1 x CPU Fan Connector (4-pin)***
    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    – 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    – 1 x 24 pin ATX Power Connector
    – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    – 1 x Front Panel Audio Connector
    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    – 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)

    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    ****CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~4/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

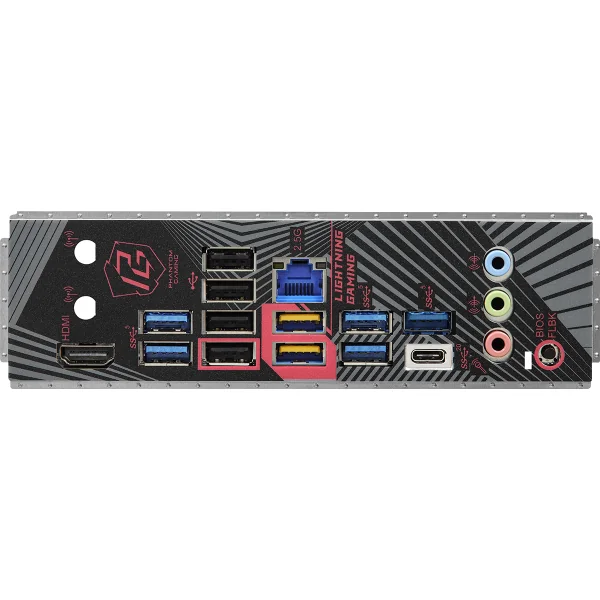

  • Rear Panel I/O
    – 2 x Antenna Mounting Points
    – 1 x HDMI Port
    – 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)
    – 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)
    – 4 x USB 2.0 Ports
    – 1 x RJ-45 LAN Port
    – 1 x BIOS Flashback Button
    – HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    – ASRock Motherboard Utility (Phantom Gaming Tuning)
    – ASRock Phantom Gaming LAN Software
    – ASRock Polychrome SYNC*
    UEFI
    – ASRock Full HD UEFI
    – ASRock Auto Driver Installer
    – ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    – 1 x User Manual
    – 2 x SATA Data Cables
    – 3 x Screws for M.2 Sockets
  • Form Factor
    – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    – 8 Layer PCB
  • OS
    – Microsoft® Windows® 10 64-bit / 11 64-bit
  • Certifications
    – FCC, CE
    – ErP/EuP ready (ErP/EuP ready power supply is required)
