Opis
| Tip procesora: | Intel |
| Podnožje: | Intel® 1700 |
| Čipset: | Intel® H770 |
| Format ploče: | ATX |
| Podržana memorija: | DDR4 |
| Podržani procesori: | Intel socket LGA1700 za Intel Core procesore 13. generacije i Intel Core 12. generacije, Pentium Gold i Celeron procesore. Podržava Intel Turbo Boost tehnologiju 2.0 i Intel Turbo Boost Max tehnologiju 3.0 |
| Memorija: | 4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memorija Dual Channel Memory Architecture Podržava Intel® Extreme Memory Profile (XMP) OptiMem |
| Slotovi za proširenje: | Intel 13th & 12th Gen Procesori 1 x PCIe 5.0 x16 slot Intel H770 Chipset 2 x PCIe 4.0 x16 slota (podržava x4 mod) 2 x PCIe 3.0 x1 slota |
| Skladište: | Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® H770 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
| Mrežna karta: | Realtek 2.5Gb Ethernet |
| Zvučna karta: | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| USB: | USB na zadnjem panelu 2 x USB-A 3.2 Gen 2 1 x USB-C 3.2 Gen 2 3 x USB-A 3.2 Gen 1 2 x USB-A 2.0 USB na prednjem panelu 2 x USB 3.2 Gen 1 headers podržava 4 dodatna USB 3.2 Gen 1 porta 2 x USB 2.0 headers podržava 3 dodatna USB 2.0 porta |

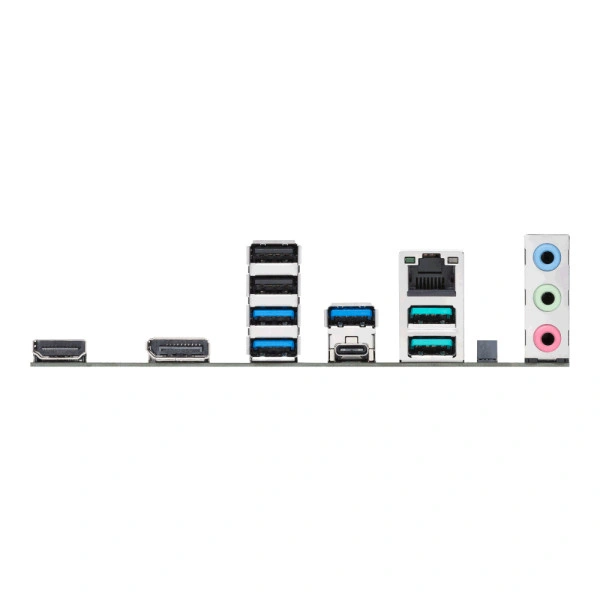

| Konektori na zadnjoj strani: | 2 x USB-A 3.2 Gen 2 1 x USB-C 3.2 Gen 2 3 x USB-A 3.2 Gen 1 2 x USB-A 2.0 1 x DisplayPort 1 x HDMI 1 x Realtek 2.5Gb Ethernet 3 x Audio porta |
| Interni konektori: | 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers 1 x 24-pin Main Power konektor 1 x 8-pin +12V Power konektor 3 x M.2 slots (Key M) 4 x SATA 6Gb/s porta 2 x USB 3.2 Gen 1 headers podržava 4 dodatna USB 3.2 Gen 1 porta 2 x USB 2.0 headers podržava 3 dodatna USB 2.0 porta 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header 1 x Thunderbolt (USB4) header |
| BIOS: | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
