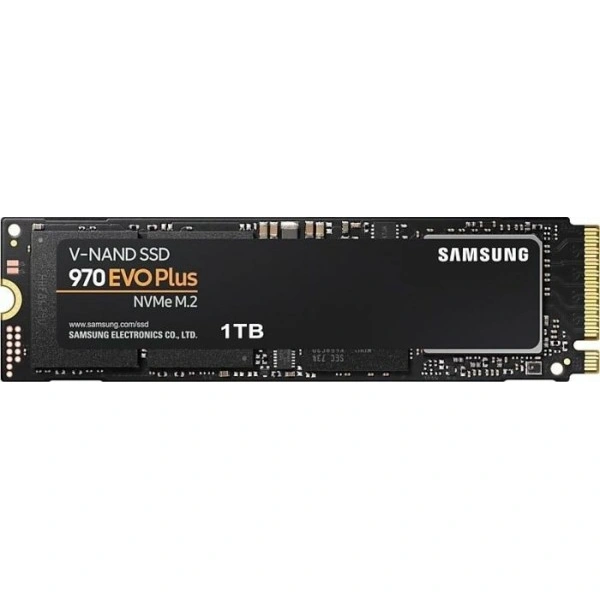

SSD M.2 NVMe SAMSUNG 1TB 970 EVO PLUS, MZ-V7S1T0BW

Opis

• • General Feature
    • • ApplicationClient PCs



    • • Capacity1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)



    • • Form FactorM.2 (2280)



    • • InterfacePCIe Gen 3.0 x 4, NVMe 1.3



    • • Dimension (WxHxD)80.15 x 22.15 x 2.38 (mm)



    • • WeightMax 8.0 g Weight



    • • Storage MemorySamsung V-NAND 3-bit MLC



    • • ControllerSamsung Phoenix Controller



    • • Cache MemorySamsung 1GB Low Power DDR4 SDRAM





• • Special Feature
    • • TRIM SupportSupported



    • • S.M.A.R.T SupportSupported



    • • GC (Garbage Collection)Auto Garbage Collection Algorithm



    • • Encryption SupportAES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)



    • • WWN SupportNot supported



    • • Device Sleep Mode SupportYes





• • Performance
    • • Sequential ReadUp to 3,500 MB/s * Performance may vary based on system hardware & configuration



    • • Sequential WriteUp to 3,300 MB/s * Performance may vary based on system hardware & configuration



    • • Random Read (4KB, QD32)Up to 600,000 IOPS * Performance may vary based on system hardware & configuration



    • • Random Write (4KB, QD32)Up to 550,000 IOPS * Performance may vary based on system hardware & configuration



    • • Random Read (4KB, QD1)Up to 19,000 IOPS * Performance may vary based on system hardware & configuration



    • • Random Write (4KB, QD1)Up to 60,000 IOPS * Performance may vary based on system hardware & configuration





• • Environment
    • • Average Power Consumption (system level)* Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration



    • • Power consumption (Idle)Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration



    • • Allowable Voltage3.3 V ± 5 % Allowable voltage



    • • Reliability (MTBF)1.5 Million Hours Reliability (MTBF)



    • • Operating Temperature0 – 70 ℃ Operating Temperature



    • • Shock1,500 G & 0.5 ms (Half sine)





• • Accessories
    • • Installation KitNot Available





• • Software
    • • Management SWMagician Software for SSD management
